Roulette Wheel Restoration & Table Fabrication

Back to All Games

PROJECT:  Roulette Wheel & Table | NATURE OF PROJECT:  Restoration Re-fabrication | DURATION: 8 weeks | COMPLETION: Summer 2015 | PURPOSE: Rental Equipment

~

Want to rent the Coolest Roulette Table?  Coming right up!

~

Before

Roulette 8' with 32" roulette wheel, Amerifun, Wichita KS.The image left shows our 8′ roulette in it’s “glory days”.  Built in the 1920’s, this table had been around the block!  Interestingly though, imagine all the games that this table hosted, those smoke-filled casino halls of yesterday.  There’s no telling who all played on it.  But don’t fret, this table will live on in a sense – we are restoring the wheel and the table definitely has re-purposing potential.

For us, this table had two main issues: the wheel needed restored and the table was VERY heavy; not well-suited for a mobile production.  In addition, the roulette wheel was incorporated into part of the 8′ playing surface, which was another disadvantage size-wise.

We will be re-fabricating the playing surface as well as adding an additional separate table for the wheel that “meets up” with the playing area.  This will be an over-sized and exciting table!

Our soon to be ready over-sized Roulette Table(s) will be available in THREE SIZES.

  • 78″X42″ overall (w/ 18″ Wheel, 20″ Wheel Coming in 2015).  Available December 2014.
  • 120″X42″ overall w/ Full-size 32″ Casino Roulette Wheel.  Available December 2014.
  • A whopping 198″ DOUBLE ROULETTE!  Available in 2015.

Want even more?  Well… we can’t reveal them quite yet but be prepared for your jaw to hit the floor!  High-tech and luxury features will make this table not only the biggest, but the best – we guarantee!  We are all about creativity, bringing you BETTER THAN VEGAS is our main focus.  Keep checking back here for the progress.  Ready by December 2015 or sooner.

~

SNEAK PEEK Aug 11, 2015:

Roulette DURING

~

Design #1

Roulette Design 12' Amerifun.  Design #1.Our original design called for an 8′ playing surface in addition to the wheel table (separate table).  We had to abandon this design for 3 reasons:

Overall Bulkiness.

Limited Dealer Chip Sort/Work Area.

Required altering custom layout standard design (we may still do this in the future).

Final Current Design

Roulette Rental Tables NEW Amerifun Wichita KSOMG here it is!  Photos of the real thing coming very soon.  Chick for larger view and have a closer look.

The beauty of this design is in the arrangement.  We had to have a ‘wheel table’ that was useable with both large tables and one issue was that a square table, while functional, looked terrible with the 10′ version (typically these have rounded corners).  The solution was a player-side oval shape that actually brought the wheel forward and closer to the players (unlike a casino which will set it back for additional security).

And remember, as mentioned, very special features will be available with this table.  Some of the features include on-board lighting, chip rail, cup holders, arm rest and another super cool one-of-a-kind secret feature with the wheel, we’ll keep you posted!

~

The Wheel

Roulette Wheel 32" BEFORE with damage.  Amerifun Wichita.We were unsure of the manufacturer of this wheel since there where no markings on it whatsoever.  We were told by the seller that it was from the 1920’s but that’s about the extent of it.

This wheel had definitely seen better days!  The veneer was separating from it’s mahogany core both inside and out, the rim was missing a large chuck of rosewood, it had been dropped more than once and suffered cosmetically from 100 years of wear and tear.  Luckily, it spun perfectly however.

~

The Bowl

Antique Roulette Wheel Amerifun DemolitionUnlike modern wheel bowls with one solid piece of wood, this bowl was made up of numerous curved pieces dove-tailed together.  There was a larger diameter upper section and a smaller lower section built to fit inside a hole in the table.  The upper section was fine but the lower sections were was out-of-whack pretty good and the veneer was buckled and busted.

We really hated to remove the veneer, not all of it was bad, but it had to be done to true-up and stabilize the multi-piece core (plus it would of never have looked quite right).  We will re-veneer the apron (inside horizontal surface) as well as around the outside skirts of the bowl which will also provide additional stability.



The antique value of this piece was lost so we’re now calling it a refurbishment instead of a restoration (but wait til you see the finished product!).

Antique Roulette Bottom Refurbish AmerifunSince this is a refurbishment we decided alter the bottom and expand the height.

In order to be a stand-alone unit, it needed a new base (occasionally clients will want to rent just the wheel).  We slightly kept with the 2-tier design however in order to retain the ability to place it inside a cutout later if need be.

The new base and lower section will be covered with 1/4″ plywood, adding further stability, and will be refinished along with the upper section (the upper side will be covered with new veneer).  The hollow void in the bottom provides for something a little extra that we’ll add later, you’re gonna love it!



Antique Roulette Bottom Height ExpansionAbout ready for veneer.  We still need to fill in all holes for a totally smooth surface for max adhesion.  We are also adding another feature to the bowl (and not the addition from above, something else!).





Veneer Pattern Cutting Roulette Wheel AmerifunThe veneer actually went easier than planned.  We used a piece of scrap as a pattern to trace the shape and cut them with a hobby knife.Veneer Application Roulette Wheel Amerifun











Veneer New Veneer working Antique Roulette Wheel Restoration Amerifun

The veneer had to be applied in sections, as original, b/c there is a conical shape to the inside of the bowl.  In addition, using clamps was difficult b/c of the slant.  The solution was shims screwed through the ball diverter holes along with some temporary holes that will be filled in later.  This approach gave us a long-lasting TIGHT bond (esp since we always use LOTS of glue).





roulette wheel 32" before puttyGetting close!  Notice the repaired bowl rim and completed veneer!!  Ready for one more piece of veneer on the side and it’s ready for primer.



Roulette Bowl first primer coat

First coat of primer, hope you’re as excited as we are!

LATEST PHOTO:

Roulette Bowl 32" First PaintFirst base coat (more putty, sanding and clear coat to follow – pin stripping too!).

~

The Wheel Head

Antique Roulette Insert AmerifunThe wheel head cone insert was also made up of a multi-piece core with veneer and was actually fairly solid, it had however also been dropped.

Aside from being a little dirty, the main damage was to the brass ring that was fused to the outside of the assembly.  The worst damage was to #’s 34 & 22 with slight damage to 00,1,29,25&35.

The damaged wood under the numbers will also be removed, the brass re-worked, the wood replaced, the number backgrounds and ball pockets re-painted, a complete set of new number decals applied and the veneer will re-finished to a high gloss.  Also a couple of the dividers are missing and need to be re-fabricated and polished but we’ve done this before.  Also wouldn’t mind having the turret re-chromed but we’ll see how it looks after a good polishing!

Antique Roulette Wheel Repair Brass Ring Amerifun Wichita KSWe removed the damaged wood, we were able to chisel out the damage at the cracks to re-attach with glue later.  On some numbers we had to remove some additional wood in order to have access to the inside edge of the brass ring.  The damage to the brass ring straightened fairly easy.

FIRST ROUGH SPIN

Pls excuse the poor video quality!  This video is meant to show how smooth it spins at low speed – This Wheel Spins Beautifully.  That was one thing we liked about it, it looked like heck but spun perfect!









FILLER & PRIMER.  Please Note, if you are viewing this page for advice, here is our 2 cents:  Polyester Filler (Bondo®) will not stick to primer (Kilz®), and we have been told that it will not stick to shellac primer sealer either (but we have not tried that yet).  Bondo sticks GREAT to bare wood (as well as bare metal).  If you need to coat or “fill in” a void before bondo, use polyester “fiberglass resin” (no wax) or polyester glazing puddy.  Most primers will stick to bondo but bondo does not stick to much of anything (esp plastic) except bare wood/metal.  In contrast, regular water-based wood filler sticks to just about anything but it less durable than bondo.  The instructions on the Bondo can says remove paint etc to bare metal/wood, although some guys say it sticks to epoxy primer but we have not tried that yet.   Some also say that less hardener (less heat) yields better adhesion too but we found that to be a fine line between not curing and cures to fast!  I have read that one drop of hardener can cure a whole can, yeah but it would surely take a hundred years!

Antique Roulette Veneer Repair for paint AmerifunOne issue with this unit from start to finish has been the veneer.  We had to strip most of it from the bowl but the wheelhead’s veneer was slightly better just a little loose here and there.  We lifted loose pieces, allowed them to “break” and then re-glued the broken pieces (should have just stripped the whole thing and re-veneered but the convex curves were fairly extreme so we elected to repair the veneer on the wheelhead.

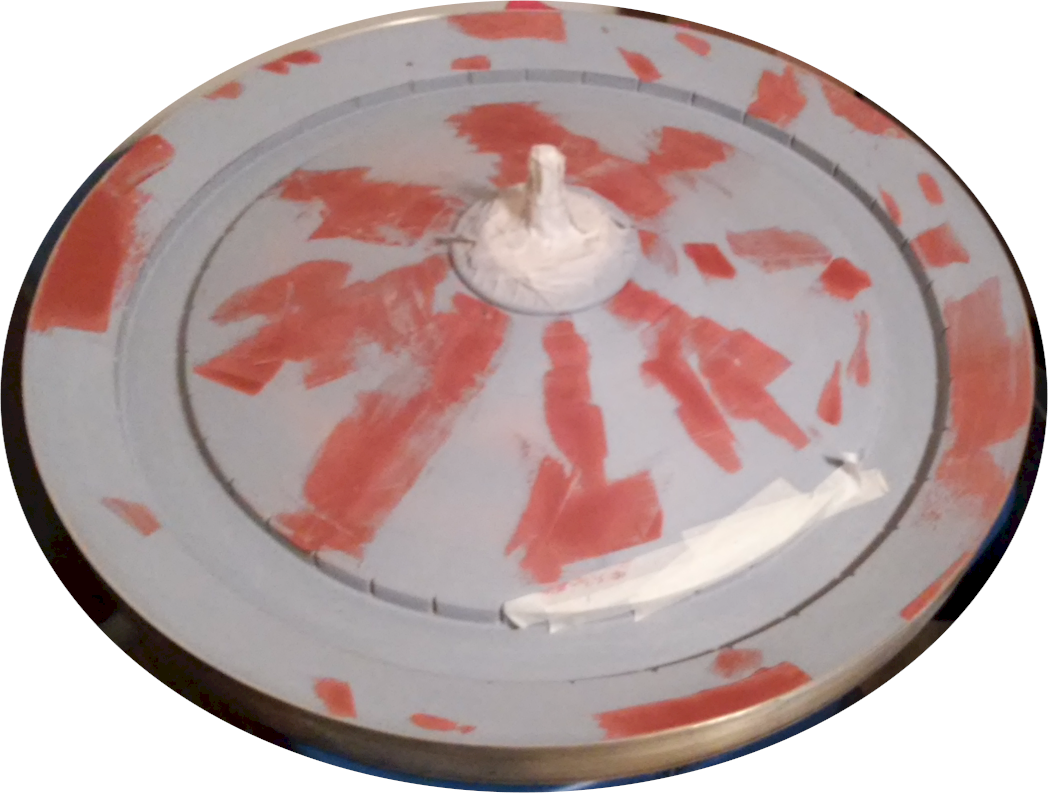

Roulette Wheelhead 32-in Restore Refinish Amerifun Wichita KSWe elected to use automotive primer and polyester glazing putty (esp since we used bondo as the initial filler).  This photo shows the wheelhead close being ready for basecoat!

~

The Table

Roulette Table 10' rough AmerifunFirst thing, just to reiterate, the original table “looked” okay but it had to go.  We are a mobile entertainment company, and the double 3/4″ plywood construction was DEFINITELY not conducive to mobile – that’s for sure (you ever lift a piece of 3/4 inch plywood? Now imagine two pieces!).

And instead of just building another table (historically we have used single 3/4″ plywood core) we will be fabricating the table with a “lightweight” focus… more to come.



Roulette 10' Chip Rail Preliminary Design AmerifunThis photo shows design implementation of the SINGLE chip rail but this was quickly abandoned for a DOUBLE chip rail.  After all, this table needs to be the Best in the World!  Also, as mentioned, high-tech features to come!!







Roulette Double Chip Rail Rough Amerifun WichitaDouble Chip Rails ready to be chopped and divided (between cup holders like the above photo).











Roulette 10' Chip Rail Final Design AmerifunLike this!  You can see why we opted for a double chip rail!!









Roulette Table Rough Incomplete 8'Getting close!  Image shows mostly complete 8′ version that allows for 18″ wheel (shown without additional table for the 32″ wheel; in this version the space for the 18″ wheel will be used for an additional sorting space).





Roulette 8' FinishedPhase 1 completed!  This table allows for use with 18″ wheel.

Roulette 8'























Wheel Support Table 10 foot Roulette AmerifunWheel Support Table (shown in the rough photos above).. notice the “dental work”.









~

Hope you liked this page!  Want to see another project?  We duplicated our CASHIER CAGE PROP for a client.. see the progress from start to finish here.
